Logical Access Readers

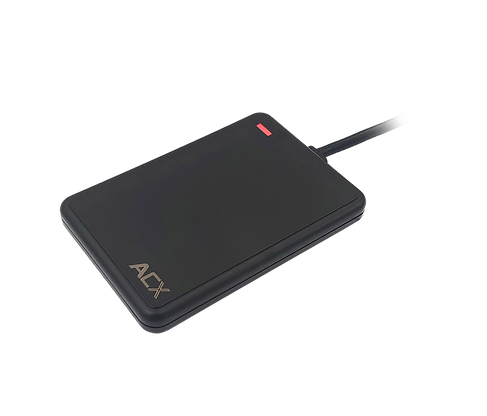

ACXHK_A1 Reader

A1

  • Support 13.56MHz Mifare, SONY Felica, Mifare, 125KHz EM, ISO14443A NXP Mifire

  • Support USB & RS232 interfaces for PC and non-PC-based platforms

  • True keyboard / USB interface

  • RED / Green / Amber LED visual indicator

  • Internal buzzer for audio indicator

  • Reader output interface max. 64 bits card number in decimal or Hex format

  • Card read range: ISO: 4cm to 6cm, Keyfob: 2cm to 3cm

  • Dimensions: 110mm x 80mm x 15mm

ACXHK_A8 Reader

A8

  • Support 13.56MHz Mifare & SONY Felica, 125KHz EM

  • True keyboard / USB interface

  • RED / Green / Amber LED visual indicator

  • Internal buzzer for audio indicator

  • Reader output interface max. 64 bits card number in decimal or Hex format, 0x AA B1 ... Bn CS BB ; AA : BOF B1 to Bn : card serial number from byte 1 to byte n CS : B1 xor ... xor Bn BB : EOF

  • Card read range: ISO: 4cm to 6cm, Keyfob: 2cm to 3cm

  • Dimensions: 90mm x 60mm x 11mm

A9

​Experience the efficiency and versatility of ACX A9 Desktop Contactless Smart Card QR Code Keyboard Interface Reader, ideal for various applications where reliable and error-free data input is crucial.

​

Features:

  • Support HID iCLASS, HID 125KHz, EM, Mifare, LEGIC & SONY Felica

  • True keyboard interface

  • Support Scramble QR Code & Contactless Smart Card

  • RED / Green / Amber LED visual indicator

  • Internal buzzer for audio indicator

  • Reader output interface max. 64 bits card number in decimal or Hex format

  • Card read range: 4cm to 20cm

  • Dimensions: 70mm x 105mm x 38.5mm

ACXHK_A9 Reader
