X  Series


NEW
ARRIVAL

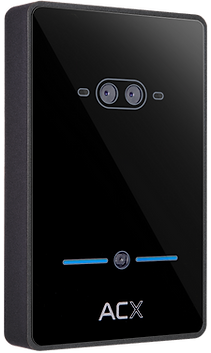

Latest Version: X5

  • Totally 50,000 templates for Facial and/or Palm Vein

  • Supports 13.56MHz NXP Mifare Classic, Mifare Plus, Mifare DESFire, LEGIC, Sony FeliCa & HID iCLASS

  • Works with 8901P Door Access Controller

  • Supports ACX Mobile Virtual Card, Bluetooth 4.0+, and Scramble QR Code

  • Red/Green/Blue or mixed color LED for visual notification

  • Reader buzzer for audio notification

  • Optical sensor tamper, "I Am Alive" feature

  • The readers work with the ACX 2062 gateway, which outputs OSDP, and the Wiegand interface

  • 13.56 MHz ISO card: 4cm+, 125 kHz ISO card: 6cm+, Bluetooth: 20cm to 10 meters, QR code: 4cm to 22cm, Facial recognition: 50cm to 150cm

  • Waterproof IP55

  • Dimensions: 80mm x 130mm x 20mm


NEW
ARRIVAL

Latest Version: X6

  • Totally 50,000 templates for Facial and/or Palm Vein

  • Supports 13.56MHz NXP Mifare Classic, Mifare Plus, Mifare DESFire, LEGIC, Sony FeliCa & HID iCLASS

  • Works with 8901P Door Access Controller

  • 12-key capacitive keypad

  • Supports ACX Mobile Virtual Card, Bluetooth 4.0+, and Scramble QR Code

  • Red/Green/Blue or mixed color LED for visual notification

  • Reader buzzer for audio notification

  • Optical sensor tamper, "I Am Alive" feature

  • The readers work with the ACX 2062 gateway, which outputs OSDP, and the Wiegand interface

  • 13.56 MHz ISO card: 4cm+, 125 kHz ISO card: 6cm+, Bluetooth: 20cm to 10 meters, QR code: 4cm to 22cm, Facial recognition: 50cm to 150cm

  • Waterproof IP55

  • Dimensions: 80mm x 160mm x 20mm

ACXHK_X9 Reader

X9

  • Flush Mount Design, 3mm thickness on wall

  • Reader total thickness 25mm only

  • Supports 13.56MHz NXP Mifare Classic, Mifare Plus, Mifare DESFire, LEGIC, Sony FeliCa & HID iCLASS

  • Face++ Facial Recognition and Fujitsu PalmSecure-F Pro Technology

  • Works with 8838 Facial and Palm Vein Door Access Controller

  • Supports ACX Facial Recognition, Palm Vein, Bluetooth, QR code and Contactless Smart Card

  • Red/Green/Blue or mixed color LED for visual notification

  • Reader buzzer for audio notification

  • "I Am Alive" feature

  • The readers work with the ACX 2062 gateway, which outputs OSDP, and the Wiegand interface

  • 13.56 MHz ISO card: 4cm+, 125 kHz ISO card: 6cm+, Bluetooth: 20cm to 10 meters, QR code: 4cm to 22cm, Palm Vein: 7cm to 12cm, Facial recognition: 50cm to 150cm

  • Dimensions: 90mm x 184mm x 40mm

ACXHK_X8 Reader

X8

  • Supports 13.56MHz NXP Mifare Classic, Mifare Plus, Mifare DESFire, LEGIC, Sony FeliCa & HID iCLASS

  • Face++ Facial Recognition Technology

  • Works with 8818 Facial Door Access Controller

  • Supports ACX Mobile Virtual Card, Bluetooth 4.0+, and Scramble QR Code

  • Red/Green/Blue or mixed color LED for visual notification

  • Reader buzzer for audio notification

  • Optical sensor tamper, "I Am Alive" feature

  • The readers work with the ACX 2062 gateway, which outputs OSDP, and the Wiegand interface

  • 13.56 MHz ISO card: 4cm+, 125 kHz ISO card: 6cm+, Bluetooth: 20cm to 10 meters, QR code: 4cm  to 22cm, Facial recognition: 50cm to 150cm

  • Waterproof IP55

  • Dimensions: 80mm x 130mm x 20mm

ACXHK_X3 Reader

X3

  • Supports 13.56MHz NXP Mifare Classic, Mifare Plus, Mifare DESFire, LEGIC, Sony FeliCa & HID iCLASS

  • Fujitsu PalmSecure-F Pro technology

  • Works with ACX 8800 Palm Vein controller

  • Supports ACX Mobile Virtual Card, Bluetooth 4.0+, and Scramble QR Code

  • Red/Green/Blue or mixed color LED for visual notification

  • Reader buzzer for audio notification

  • Optical sensor tamper, "I Am Alive" feature

  • The readers work with the ACX 2062 gateway, which outputs OSDP, and the Wiegand interface

  • 13.56 MHz ISO card: 4cm+, 125 kHz ISO card: 6cm+, Bluetooth: 20cm to 10 meters, QR code: 4cm to 22cm, Palm Vein: 7cm to 12cm

  • Waterproof IP55

  • Dimensions: 80mm x 130mm x 20mm

ACXHK_X2 Reader

X2

  • Supports 13.56MHz NXP Mifare Classic, Mifare Plus, Mifare DESFire, LEGIC, Sony FeliCa & HID iCLASS

  • 12-key capacitive keypad

  • Supports ACX Mobile Virtual Card, Bluetooth 4.0+, and Scramble QR Code

  • Red/Green/Blue or mixed color LED for visual notification

  • Reader buzzer for audio notification

  • Optical sensor tamper, "I Am Alive" feature

  • The readers work with the ACX 2062 gateway, which outputs OSDP, and the Wiegand interface

  • 13.56 MHz ISO card: 4cm+, 125 kHz ISO card: 6cm+, Bluetooth: 20cm to 10 meters, QR code 4cm to 22cm

  • Waterproof IP55

  • Dimensions: 80mm x 130mm x 20mm

ACXHK_X1 Reader

X1

  • Supports 13.56MHz NXP Mifare Classic, Mifare Plus, Mifare DESFire, LEGIC, Sony FeliCa & HID iCLASS

  • Supports ACX Mobile Virtual Card, Bluetooth 4.0+ and Scramble QR Code

  • Red/Green/Blue or mixed color LED for visual notification

  • Reader buzzer for audio notification

  • Optical sensor tamper, "I Am Alive" feature

  • The readers work with the ACX 2062 gateway, which outputs OSDP, and the Wiegand interface

  • 13.56 MHz ISO card: 4cm+, 125 kHz ISO card: 6cm+, Bluetooth: 20cm to 10 meters, QR code 4cm to 22cm

  • Waterproof IP55

  • Dimensions: 80mm x 130mm x 20mm
